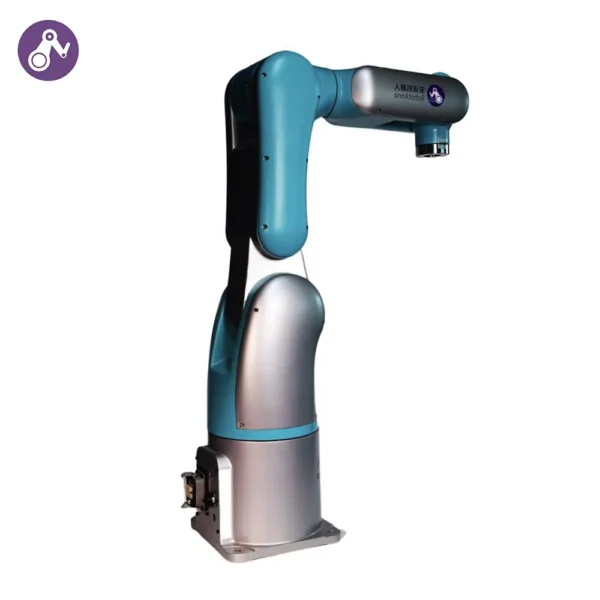

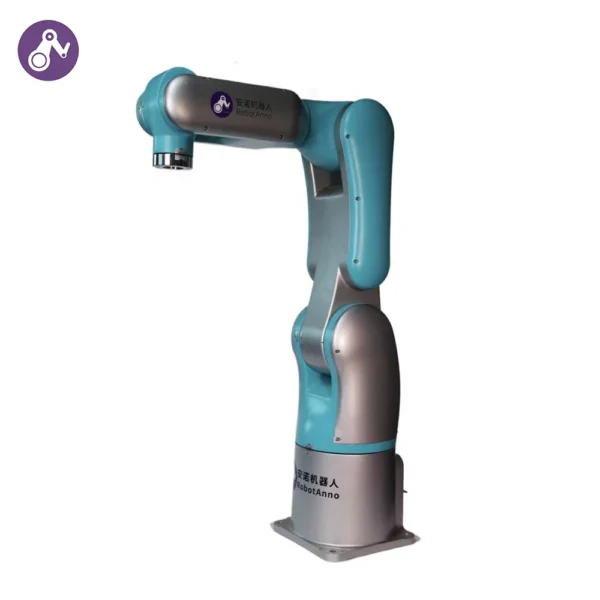

Factory Small Robotic Arm Handling Robot Servo Motor Welding Manipulator Research Robotic Arm
$20,873.89
- Description
- Additional information
- Reviews (0)
- More Products
- Store Policies
- Inquiries
Description
Products Description
|
Model
|
SJ603
|
SJ607-R900
|
||
|
DOF
|
6
|
6
|
||
|
Repeatability
|
±0.05mm |
±0.05mm
|
||
|
Working radius
|
540mm |
905mm
|
||
|
Rated payload
|
3kg
|
5kg
|
||
|
Maximum payload
|
4kg
|
7kg
|
||
|
Working range
|
J1
|
-175°/+175° |
-170°/+170°
|
|
|
J2
|
-130°/+100° |
-130°/+100° |
||
|
J3
|
-50°/+90° |
-50°/+200° |
||
|
J4
|
-175°/+175° |
-160°/+160° |
||
|
J5
|
-120°/+120° |
-130°/+130° |
||
|
J6
|
-180°/+180° |
-180°/+180° |
||
|
Maximum speed
|
J1
|
-148°/sec
|
-148°/sec |
|
|
J2
|
-148°/sec |
-148°/sec |
||
|
J3
|
-178°/sec |
-178°/sec |
||
|
J4
|
-167°/sec |
-167°/sec |
||
|
J5
|
-178°/sec |
-178°/sec |
||
|
J6
|
-225°/sec |
-225°/sec |
||
|
Body weight
|
22kg
|
51kg
|
||
|
Voltage
|
AC220V, 50HZ |
AC220V,50HZ
|
||
|
Power plant
|
DC Servo motor
|
|
||
Main Applications
Additional information
| Model Number | SJ607-R900 |
|---|
