Stainless Steel Cabinets Robot Arm Other Welding Equipment 6 Axis Industrial Robot
$17,515.26
- Description
- Additional information
- Reviews (0)
- More Products
- Store Policies
- Inquiries
Description
Products Description

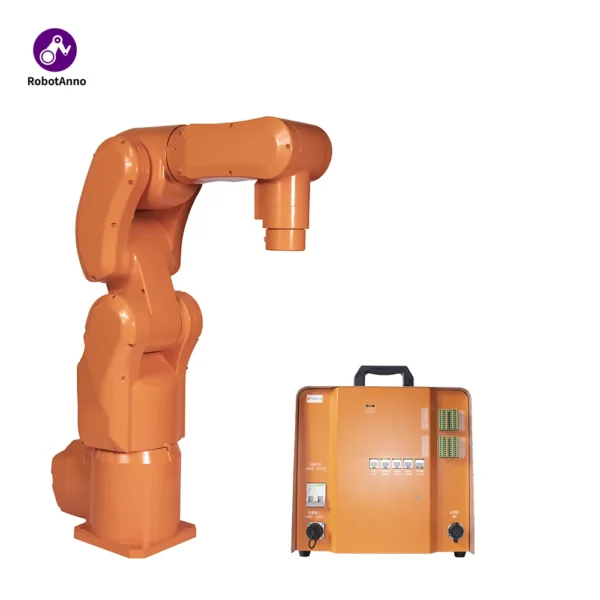

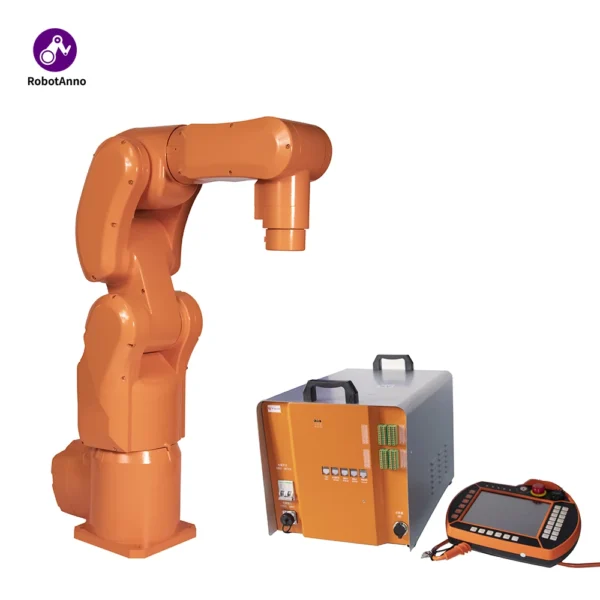

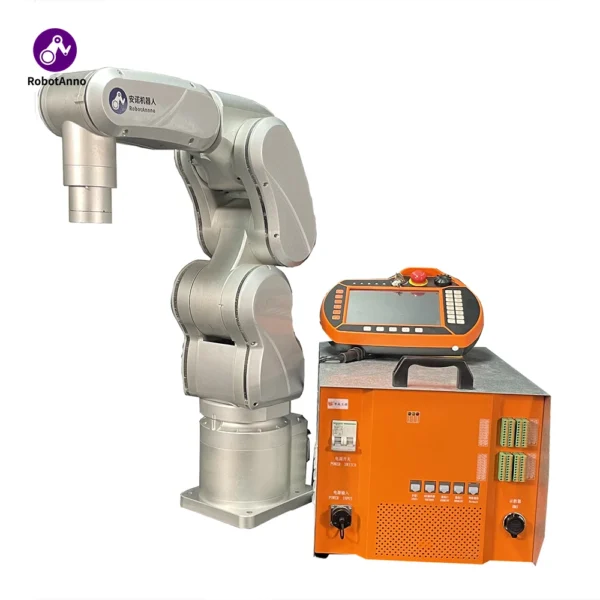

Light weight robot, small in shape and light in weight makes it suitable for assembling, small unit robots which can complete all kinds of work such as loading/unloading/sorting/assembly at high speed and high precision. At the same time, all the robot cables are built in and can be operated flexibly in a small space. The installation mode can be installed on the ground, mounted or inverted.
Features: Wrist rated load: 5Kg. Maximum working radius: 580mm.
Features
Light weight
Fast running speed
Beautiful
High precision of repeated positioning
Built-in cable
|
Dof
|
6 axis
|
||
|
Working radius
|
580mm
|
||
|
Rated load
|
5kg
|
||
|
Maximum load
|
6kg
|
||
|
Working range
|
J1
|
-175°~ +175°
|
|
|
J2
|
-130°~ +50°
|
||
|
J3
|
-120°~ +50°
|
||
|
J4
|
-175°~ +175°
|
||
|
J5
|
-120°~ +120°
|
||
|
J6
|
360°
|
||
|
Repeatability
|
±0.05mm
|
||
|
Material
|
Aluminum
|
||
|
Body weight
|
23kg
|
||
|
Input voltage
|
AC220V, 50HZ
|
||
|
Power plant
|
AC servo motor
|
||
|
Reducation
|
Harmonic deceleration
|
||
|
Environmental requirement
|
Temperature
|
5℃-50°
|
|
|
Humidity
|
10%-80%
|
||
|
Installation
|
Table top, side mout, flip mount
|
||
|
Maximum speed
|
J1
|
176°/s
|
|
|
J2
|
176°/s
|
||
|
J3
|
148°/s
|
||
|
J4
|
237°/s
|
||
|
J5
|
237°/s
|
||
|
J6
|
400°/s
|
||
Main Applications
Additional information
| Model Number | Q605-A |
|---|
